Learning About the Texas Instruments LaunchPad

The following presentation is from an August 14th, 2012 workshop. This workshop steps through some very simple exercises introducing the Texas Instruments LuanchPad, an MSP430 embedded development board.

Previous Main Up Next

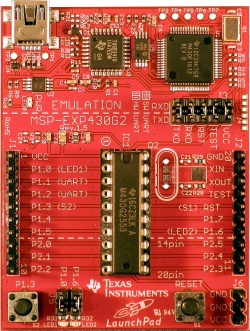

MSP-EXP430G2 Board
LaunchPad Board

Introduction

Workshop Introduction
Workshop Introduction

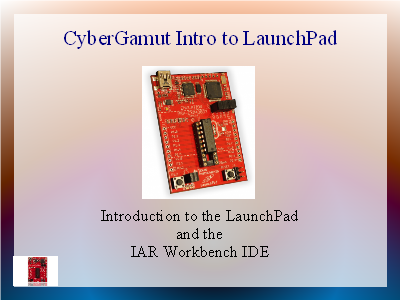

The Introduction provides an overview of the workshop and the supplies required for the exercises. We take a quick look at the board and the processor on it.

Exercise One

Workshop Exercise One
Workshop Exercise One

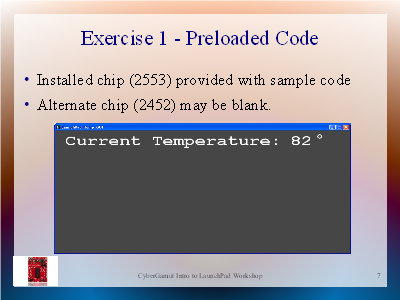

Exercise One connects the board to your computer and runs the temperature demo which Texas Instruments has already programmed into the processor.

Exercise Two

Workshop Exercise Two
Workshop Exercise Two

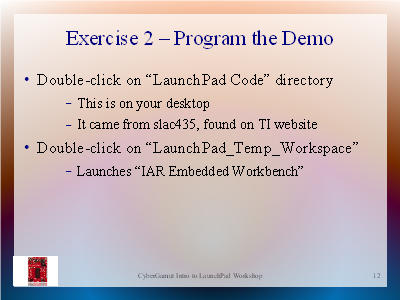

Exercise Two uses the IAR Embedded Workbench application to view the source code for the temperature demo and program the demo into the MSP430.

Exercise Three

Workshop Exercise Three
Workshop Exercise Three

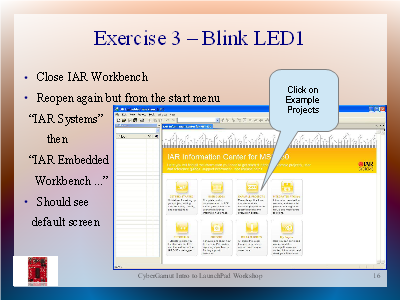

For Exercise Three we write our own application and program the MSP430. Our initial application will blink one of the LEDs on the LaunchPad board.

Exercise Four

Workshop Exercise Four
Workshop Exercise Four

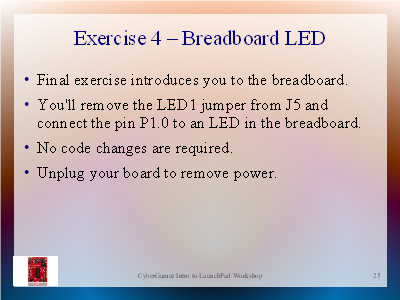

Exercise Four uses the code from Exercise Three to blink an LED on a solderless breadboard.

Extra Notes

These extra notes include:
